SAF-Z限流优化避雷针系列

产品介绍：

限流避雷针能在雷云电场的作用下，产生提前先导通道,提高避雷针的虚拟高度,使雷电在保护范围内发生闪击时能准确地击在避雷针上，避免了传统避雷针的“侧击”和“绕击”现象。雷电在发生闪击后，限流避雷针在阻抗变换器的作用下，能有效地将可能发生的几十千安到上百千安的雷电流变成数千安入地。避免了传统避雷针接闪后的强电流入地时产生的二次效应;减弱了大电流入地出现的反击和强电磁干扰产生的感应过电压。因限流避雷针的入地电流较少,是防直击雷的理想设备。无论是限流还是优化避雷针都广泛适用于普通避雷针无法保护的各类建筑物、通信基站、气象台站、石油气气站等的直击雷防护。

The current limit lightning rod in the Thundercloud electric field under the action of the lead in advance lead to improve the virtual height of the lightning rod lightning protection within the scope of the lightning strike can accurately hit the lightning rod to avoid the traditional lightning rod "side strike" and " Shielding "phenomenon. Lightning in the event of lightning, the current limiting lightning rod in the role of the impedance converter, can be effective in the tens of thousands of security to hundreds of thousands of thousands of lightning into thousands of security into the ground. To avoid the traditional lightning rod connected to the flash after the strong current into the ground when the secondary effect; weakened the emergence of large current into the ground and the strong electromagnetic interference induced over-voltage. Due to current limiting lightning rod into the ground current is less, is the ideal equipment for anti-lightning. Whether the current limiting or optimization of lightning rod are widely applicable to ordinary lightning rod can not protect all types of buildings, communication base stations, meteorological stations, gas stations and other direct lightning protection.

产品特点

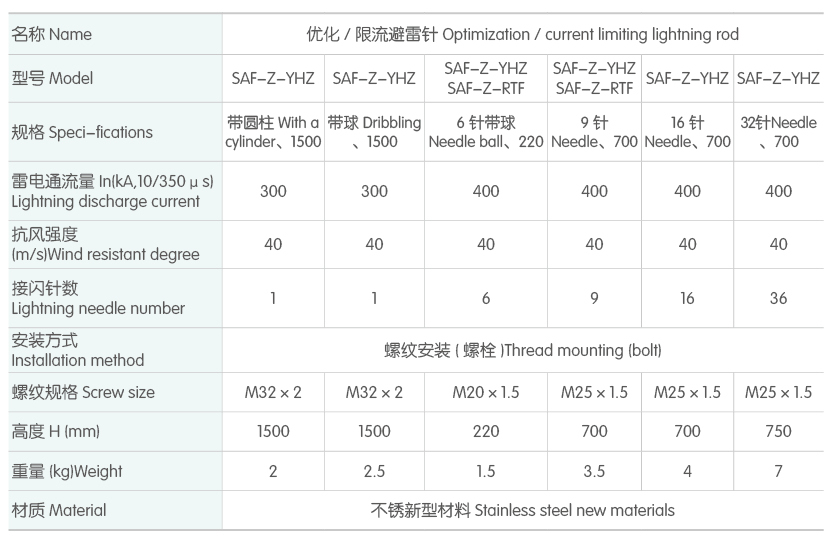

技术参数
安装说明

1. 接闪更有效，无绕击、侧击现象，减少雷击点落于被保护物的概率;
2.有效减弱雷电流泄流强度，避免了强雷电流入地的二次效应;
3.入地电流小减小了大电流入地形成的电位差而出现的反击现象，减弱了因引下线出现的大电流而形成的感应过电压现象;
4.不锈新型优质钢材料，耐腐蚀，抗风能力强;
5.免维护:无源,无需供电,无耗能元件对下行雷电易吸引进行接闪;
6.性能优越:在同等条件(高度)下，比普通避雷针保护范围大;
7.安全可靠:无放射性元素，耐腐蚀，抗冲击力强。
1. Flicker is more effective, no impact, side- -strike phenomenon, to reduce the probability of lightning point falls on the protected object;
2. To efectively reduce the lightning current discharge intensity, to avoid the secondary efects of strong lightning into the ground;
3. Inlet current is small to reduce the large current into the ground to form the potential difference and the emergence of counterattack phenomenon, weakened due to lead down the emergence of a large current and the formation of inductionOver - voltage phenomenon;
4. Stainless steel new high- -quality steel materials, corrosion resistance, strong wind resistance;
5. Maintenance-free: passive, no power supply, no energy-consuming components on the downlink lightning easily attracted to flash;
6. Superior performance: under the same conditions (heightl. than the scope of protection of ordinary lightning rod;

7. Safe and reliable: no radioactive elements, corrosion resistance, impact resistance.

订货须知

用户在产品加工定制或订货时，应详细标明产品系列、型号、数量。例如:限流、优化型避雷针系列SAF- Z-YHZ20根。
Users in the product custom processing or ordering, should be marked with the product line, model, quantity. For example: current limiting, optimized lightning rod series SAF. -Z. -YHZ20 root.

按被保护建筑物的面积、高度、所在地雷暴日及地理环境校正系数、建筑物使用性质等选择避雷针,并确定避雷针立杆高度。避雷针的法兰盘必须高出最高保护物1.5m以上.根据这一要求设置加高杆塔或铁塔高度。避雷针应通过引下线与女儿墙.上的避雷带或地网连接，要求接地电阻值≤10日。在土壤电阻率高的地区，可适当放宽对接地电阻的要求。安装时各部件间要连接可靠，安装完成后，各连接处或金属表面涂镀层有损伤处,应做好防锈处理。避雷针投入使用后，每年雷雨季节前应进行检查;各连接部位的连接是否牢固，引下线与接地系统连接是否可靠。
According to the protected building area, height, the location of the thunderstorms and geographical environment correction factor, the use of building properties such as the choice of lightning rod, and to determine the lightning pole height. The flange of the lightning rod must be higher than the maximum protection of 1.5m above, according to the requirements set to increase the height of the tower or tower. Lightning rod should be cited through the downline and the parapet on the lightning rod or grounding network connection, grounding resistance required≤ 102. In areas with high soil resistiviy, the requirements for grounding resistance may be appropriately relaxed. Installation of the parts to be reliable, the installation is complete, the connection or metal surface coating layer of damage, should do a rust treatment. Lightning rod into use, each year before the thunderstorm season should be checked; the connection of the connetion is solid, lead down and grounding system is reliable.
