SAF-XHRJ45网络通讯信号防雷器系列

产品介绍：

RJ45网络通讯信号防雷器适用于网络服务器、路由器、网络交换机、HUB、信息终端等设备在网络线路上的雷电及电涌保护。核心元件采用进口半导体箝位器件和进C集成过压保护器件，实现了高效可靠的抗高压脉冲冲击功能和准确的箝位电压。产品网络端口保护包含单口4线(12，36) 和8线(12,36,45,78)保护以及集线式网络8口、16口、24口以太网交换机。接口形式为标准的RJ45接口,安装维护方便，8/20 μ s最大放电电流Imax可达10KA每线，动作反应时间快，适用于高速互联网络的雷电浪涌防护。

RJ45 series network surge protection device suits for network servers, routers, network switches, HUB, information terminals and other equipment in the network line lightning and surge protection. The core components using imported semiconductor clamping devices and imported integrated overvoltage protection devices, to achieve a highly eficient and reliable anti-high voltage pulse impulse function and accurate clamping voltage. The product network port protection includes a single- -port 4- -wire (12,36) and 8- -wire (12,36,45,78) protection and a hub- -and- -spoke 8-. 16- and 24- -port Ethernet switch. The interface is a standard RJ45 interface, easy installation and maintenance, 8 / 20 μ s maximum discharge current Imax up to 10KA / line, the action response timne for high-speed Internet ligtning surge protection.

产品特点

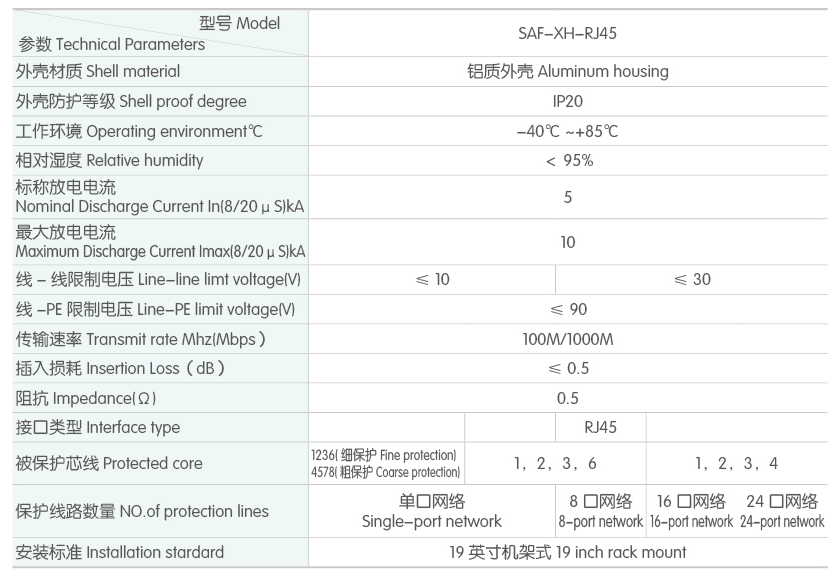

技术参数
安装说明

1. 高速率传输、低损耗。
2.过电压响应快速。
3.输入输出端RJ45水晶插头。
4.多级对地泄放电路、限制电压更低。
5.通流容量大,采用多级保护。
6.内置快速半导体保护器件，响应速度快，残压低。
7.集线式网络信号防雷器适用于10/100M网络设备。
8.箝位准确,输出残压低.
1. High-speed transmission, low loss.2. Over- voltage response fast.
3. Input and output RJ45 crystal plug.4. Multi-level ground discharge circuit, limiting the voltage lower.
5. Flow capacity, the use of multi-level protection.
6. Built-in fast semiconductor protection devices, fast response, low residual voltage.
7. Set-line network signal lightning protection device for 10 / 100M network equipment.
8. Clamp accurate, the output residual voltage is low.

订货须知

用户在产品加工定制或订货时，应详细标明产品系列、型号、接口数、数量。例如: RJ45 网络通讯防雷器黑色系列SAF- -XH- -RJ45/8/100台。
The user shall specify the product series, model, interface number and quantity in detail when the product is customized or ordered. For example: RJ45 network communication lightning protection black series SAF- -xh-rj45/8/100.

本产品为串联连接方式，请选择与被保护设备接口类型相同的产品，防雷器的IN为输入，OUT为输出，输入端接外线，输出端与被保护设备的输入端相连接。防雷器的PE线必须与防雷系统的地线可靠连接，连接线要求短而粗。防雷器在使用期间，应定期检测，如果出现故障，应及时维修或更换，以确保设备安全。

This item is in series connection way, when connected kindly select matched interface item.lnput terminal connect outsideline,output terminal connect with protected equipment inline,PE connect with ground wire.Connect wires should short and thick. Surge protection device should test regularl, if happens error, should change new one or maintain in time.
