SAF-XHRJ11电话通讯信号防雷器系列

产品介绍：

RJ11电话通讯信号防雷器按照IEC通讯电涌保护器的标准设计。该系列产品适用于电话线路、传真数据通讯专线、程控交换机及所有RJ11接口的防雷保护。产品的接口形式为标准RJ11水晶接头,有单口RJ11、20口和300 RJ11保护，单口信号电涌保护器可以保护1对/2对通讯线路,多口产品可安装在19寸标准机柜内，安装维护方便，8/20μ S最大放电电流Imax可达10KA/每线，反应时间为秒级、残压更低。

RJ11 series surge protection device is made according to IEC communication standard.This series of products for telephone lines, fax data communication line, program-controlled switches and all RJ11 interface lightning protection. The interface of the product is the standard RJ11 crystal connector, with single port RJ1, 20 port and 30 port RJ11 protection. The single port signal surge protector can protect 1 pair / 2 pairs of communication lines. The muli-port products can be installed in 19- Installation and maintenance convenient, 8/ 20μ S maximum discharge current Imax up to 10KA/ per line, the reaction time for the second class, lower residual pressure.

产品特点

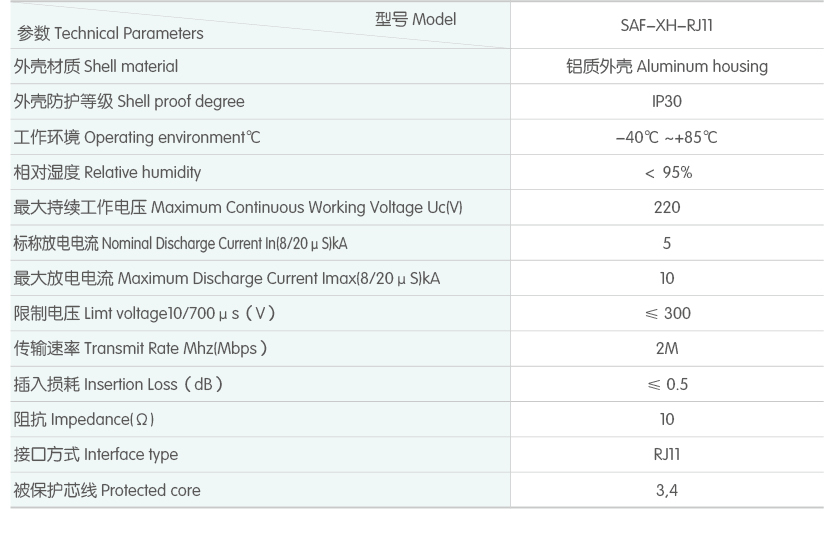

技术参数
安装说明

1.高速率、低损耗;
2.干扰吸收;
3.提供多种不同工作电压选:DC24V、DC48V、DC200V;
4.节能、环保、安装简单方便，无须特殊维护;
5.驻波系数小,工作频率范围宽。
1. High- -speed, low loss;
2. interference absorption;
3. Provide a variety of different working voltage selection: DC24V, DC48V, DC200V;
4. Energy saving, environmental protection, easy to install, no special maintenance;
5. Standing wave cofficient is small, wide operating frequency range.

订货须知

用户在产品加工定制或订货时，应详细标明产品系列、型号、数量。例如: RJ 11电话通讯信号防雷器系

列SAF- -XH-RJ11/50台。
The user should indicate the product series, model and quantity in detail when product processing or ordering. For
example: RJ11 telephone communication signal lightning protection equipment series SAF- -xh-i11/50.

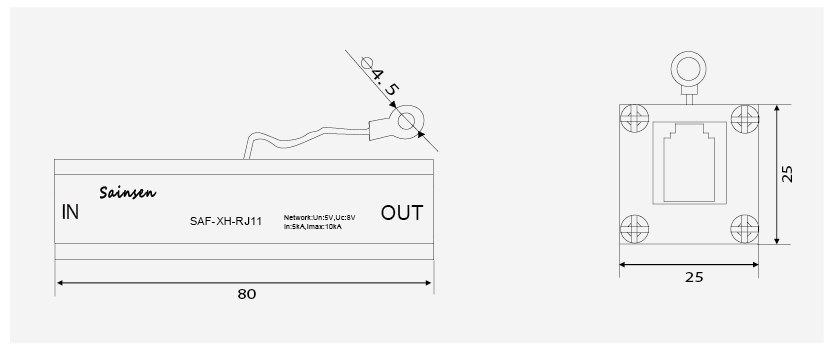

本产品为串联连接方式，请选择与被保护设备接口类型相同的产品，防雷器的IN为输入，OUT为输出,输入端接外线，输出端与被保护设备的输入端相连接。防雷器的PE线必须与防雷系统的地线可靠连接,连接线要求短、粗、直。防雷器在使用期间，应定期检测，如果出现故障，应及时维修或更换，以确保设备安全。

This item is in series connection way, when connected kindly select matched interface item.Input terminal connect outside line,output terminal connect with protected equipment inline,PE connect with ground wire.Connect wires should short and thick. Surge protection device should test regularly, if happens eror, should change new one or maintain in time.
