SAF-XH3视频网络监控三合一防雷器系列

产品介绍：

视频监控系统三合一系列摄像机防雷器，按照IEC标准及国家标准、多功能一体化设计。本产品适用于安全防范系统前端高速球、中速球、云台摄像机等设备的电源线、视频线和信号控制线的雷电浪涌防护。广泛应用于库房、小区、道路监控系统前端设备的防雷保护.本产品能有效防止因电源、视频、控制线等电位差瞬时增大而造成设备损坏，响应速度快、集成度高，安装简便三合-组合为-体机。产品内置过流、过压装置，实现了高效泄放雷电流和抗雷电电磁脉冲冲击的功能;具有多极保护，残压极低;传输性能优异、响应速度快、通流容量大、寿命长;规格齐全，可提供多种不同工作电压等级及雷电通流量的产品，并可根据用户需要，定制生产。

This video monitor three-in-one surge protection device is made according to IEC standard, multi-function design.This product is suitable for security protection system front- -end fixed installation of cameras and other equipment, power lines and video lines lightning surge protection, widely used in communication sites, bildings, warehouses, residential and other security places indoor and outdoor road monitoring system equipment Lightning surge protection for control lines. This product can efectively prevent the power supply, video and other potential difference caused by instantaneous damage caused by equipment, fast response, high integration, easy insalltion, combo as one machine. The product has built- in over- current and over-voltage devices to realize the function of high- eficiency discharge lightning current and anti- lightning electromagnetic impulse impact. It has multi-pole protection and low residual voltage. It has excellent transmission performance, fast response, large flow capacity and long life. ; Complete specifications, can provide a variety of diferent operating voltage levels and lightning flow of products, and according to user needs, custom production.

产品特点

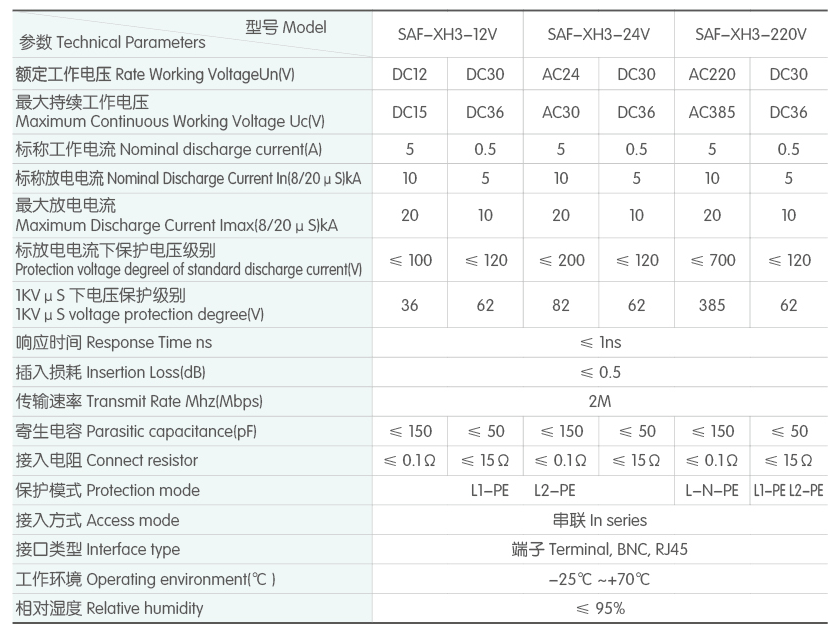

技术参数

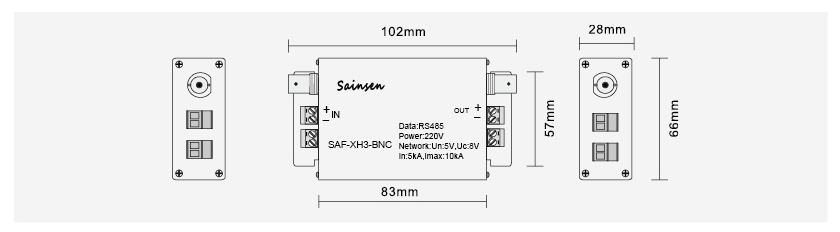

安装说明

1.产品采用串联式结构设计，具有多级保护功能。
2.信号部分均采用电子开关接地方式，能有效消除因共地而对传输信号产生的各种干扰。
3.通流容量大损耗低。使用寿命长。
4.集成化组合、体积小、接线简易，安装方便，实用性强。
1. The product adopts the series structure design, has the multi-level protection function.
2. The signal part adopts the electronic switch grounding mode, which can effectively eliminate all kinds of interference caused by the common ground to the transmission signal.
3. Flow capacity and low loss. long lifetime.
4. Integrated combination, small size, easy wiring, easy insallation, practicaliy.

订货须知

用户在产品加工定制或订货时，应详细标明产品系列、颜色、型号、电压、数量。例如:视频监控三合一防雷器蓝色SAF- -XH3- -220/80 台。
The user should specify the product series, color, model, voltage and quantity when the product is customized or ordered. For example: video sureillance tri-in-one lightning protector blue SAF- -xh3-220/80.

本产品为串联连接方式，防雷器的IN为输入，OUT 为输出,输入端接外线，输出端与被保护设备的输入端相连接。产品应与被保护设备的工作电压相匹配，安装时请根据安装示意图所示连接。其中电源线路的“L/+ ’为火线/正极，“N/-" 为零线/负极，控制信号线路的“A” 为正极，“B" 为负极, PE为防雷接地，切勿接错。防雷器的PE线必须与防雷系统的地线可靠连接，连接线要求短、粗、直。防雷器在使用期间,应定期检测，如果出现故障，应及时维修或更换，以确保设备安全。
This product is connected in series, lightning in the IN for the input, OUT for the output, input external terminal, the output and the input of the protected device is connected. The product should be matched with the working voltage of the equipment to be protected. Please connect it according to the istalltion diagram. The "A" of the control signal line is the positive pole, "B" is the negative pole, the PE is the lightning protection grounding, and it should not be connected with the power supply line "L 1 +", "N/ -" wrong. Lightning protection device musi be the PE line and the lightning protection system to reliably connect the ground, the cable requires a short, thick, straight. SPD in use, should be regularly tested, if there is failure, should be timely repair or replacement, to ensure the safety of equipment.
