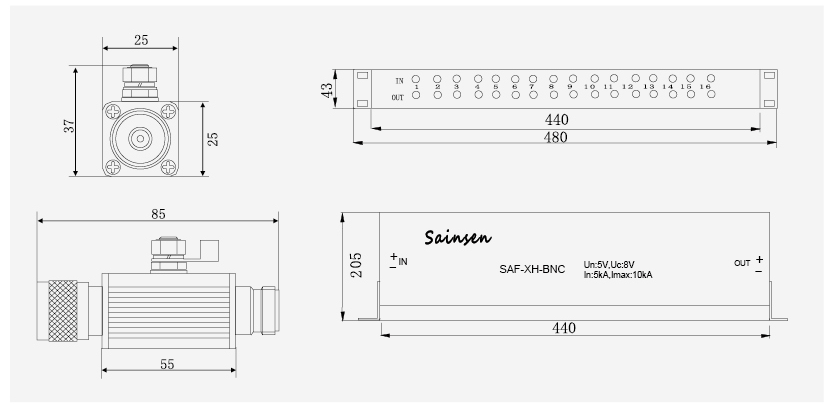

SAF-XH视频射频信号防雷器系列

产品介绍：

视频/射频同轴信号电涌保护器分为单口BNC、8口BNC、16 O BNC、24口BNC、F头及N头等同轴接口的防雷保护。本产品适用于监控系统视频线BNC接口、短阵BNC接口、光端机BNC接口、摄像机BNC接口的雷电浪涌防护,产品采用泄流、嵌位、滤波的原理,实现了高效泄放雷电流和抗雷电电磁脉冲冲击的功能;具有多级保护，残压极低;传输性能优异、响应速度快、通流容量大、安装接线方便，维护简单的优点。可提供不同工作电压等级和接口数量的产品。8/20 μs最大放电流Imax可达10KA,该产品广泛应用于监控系统视频线、有线电视、CCTV防雷以及其它视频线信号防雷。

Video/ RF coaxial signal surge protetive device has single port,8 ports,24 ports, F interface and N interface etc.This product is suitable for BNC interface, BNC interface, BNC interface, BNC interface lightning protection of the video system.The product adopts the principle of discharge, clamping and fitring. It realizes eficient discharge of lightning current andanti- Lightning electromagntic pulse impact function; with multi-level protection, residual voltage is very low; excellent transmission performance, fast response, large flow capacity, easy insallation and maintenance, the advantages of simple maintenance. Available in different voltage levels and interface number of products. 8/ 20 μ s Maximum discharge current Imax up to 10KA, the product is widely used in monitoring system video cable, cable TV, CCTV and other video signal lightning protection lightning.

产品特点

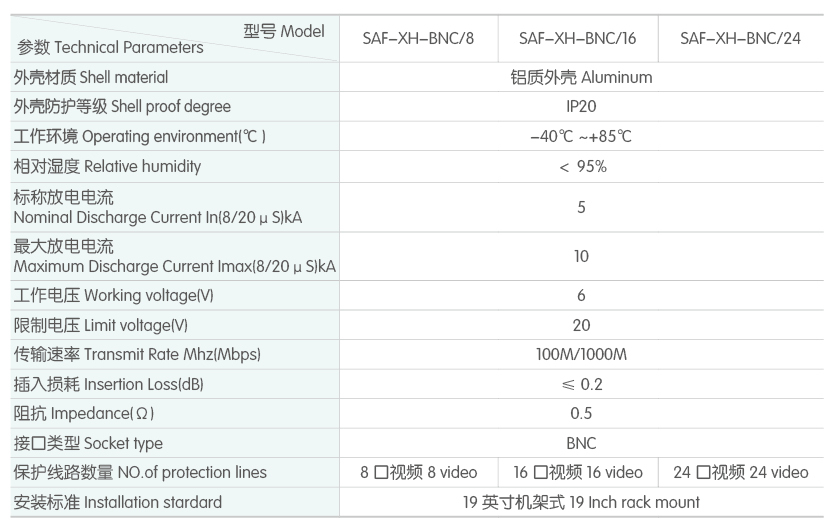

技术参数
安装说明

1.插入损耗低，确保线路畅通;
2.多级对地泄放电路、限制电压更低;
3.通流容量大，采用多极保护;
4.内置快速半导体保护器件，响应速度快，残压低;
5.驻波系数小、工作频率范围宽;
6.对信号无干扰，微插入损耗;
7.节能、环保，安装简便,适用于各种标准接口类型。
1. Low insertion loss, to ensure smooth lines; 2. Multi- -stage discharge current to circuit, low limit voltage;
3. Large flow capacity,mutil- -level protection;
4. Built-in fast semiconductor protection devices, fast response, low residual voltage;
5. Small standing wave cofficient, wide operating frequency range;
6. No interference to the signal, micro-insertion loss;
7. Energy- saving, environmental protection, easy insallation, suitable for a variety of standard interface types.

订货须知

用户在产品加工定制或订货时，应详细标明产品系列、型号、电压、数量。例如:视频信号防雷器系列SAF- -XH- BNC/8,100台。
The user should specify the product series, model, voltage and quantity when the product is customized or ordered.For example: video signal lightning protection SAF- :xh-bnc /8,100 sets.

本产品为串联连接方式，请选择与被保护设备接口类型相同的产品，防雷器的IN为输入，OUT 为输出，输入端接外线，输出端与被保护设备的输入端相连接。防雷器的PE线必须与防雷系统的地线可靠连接，连接线要求短、粗、直。防雷器在使用期间，应定期检测，如果出现故障，应及时维修或更换，以确保设备安全。

This item is in series connection way, when connected kindly select matched interface item.Input terminal connect outside line,output terminal connect with protected equipment inline,PE connect with ground wire.Connect wires should short and thick. Surge protection device should test regularly, if happens error, should change new one or maintain in time.
