SAF-LD路灯防雷系列

产品介绍:

本系列路灯电源类SPD主要适用于50Hz/60Hz电源冲击电流通流量不大于50KA的路灯电源系统中,限制瞬态过电压增幅。吸收或者泄放电涌电流能量,可以使被保护的路灯电源系统不受电涌的侵害。SPD采用全封闭结构,结合在IP67等级中使用。


This series of street lamp power supply SPD is mainly applicable to street lamp power system with impact current flow of 50Hz/60Hz power supply no more than 50KA, limiting the increase of transient overvoltage. Absorbing or discharging the surge energy can protect the street lamp power system from the surge. SPD adopts a fully closed structure, which is used in combination with IP67 level.


::工作温度: - 40°C-- -80°C
::海拔不超过2000m
:适合电源第二、三级防雷保护,不适合第一-级保护
::不要高于IP67防水等级

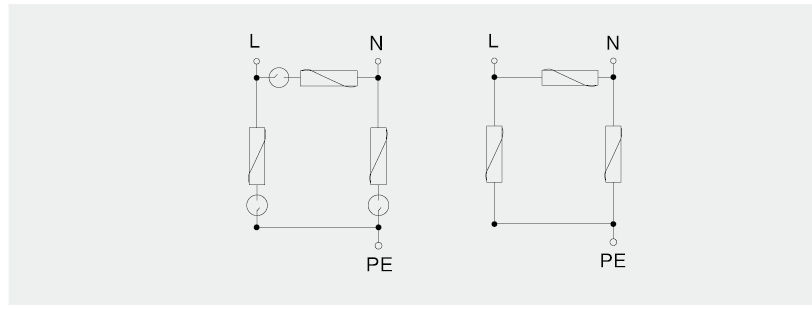

:使用压敏串联放电管的方式,不带脱扣及报警装置

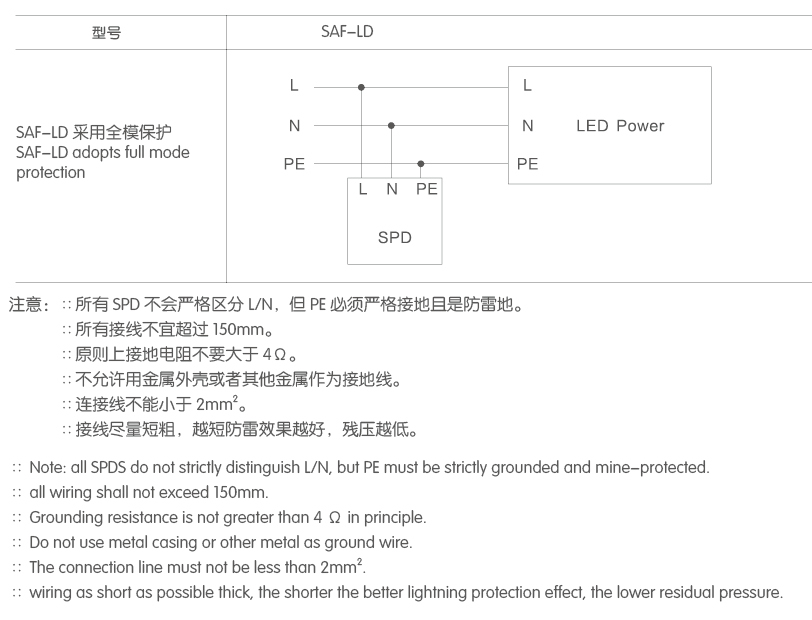

:安装方式为直接接线外加螺丝固定
::无冲击震动或无振动的地方
::使用接地“TT” ,"TT.TS.TN-N-S"
:无特别腐蚀及粉尘易燃易爆场合
: operating temperature: -40C -- 80°C
: suitable for the second and third level of lightning
. :: The altitude shall not exceed 2000m
protection, not for the first level of protection
:: do not exceed IP67 waterproof rating
:: Use pressure sensitive series discharge tube, without
:: installation mode is direct connection and screw
tripping and alarm device
fixation
:: A place free from shock or vibration
:: use ground "T"TT.TS. Tn-n-s"
:: no special corrosion and dust flammable and
explosive occasions
