该系列电涌保护器适用于新能源风力电力系统和太阳能光伏发电系统中的光伏板、逆变器等设备的防雷保护。工作电压500V、800V、1000V。 安装在直流电路总电源系统中，对间接雷电流、直接雷电流或其它瞬间过电压进行保护。
This series surge protector is suitable for lightning protection of new energy wind power system and photovoltaic panel,inverter and other equipment in solar photovoltaic power generation system. The working voltage is 500V, 800V and 1000V.Installed in the general power supply system of direct current circuit to protect indirect lightning current, direct lightning current or other transient overvoltage.
1.可插拔模块设计，配置遥信接口.远程告警;
2. N位置优点无论哪一-级线路泄放雷电流均使路径最短, 残压进一步隆低;
3.纳秒极响应速度，最大响应时间低于25ns;4.8/20μs波形;
1. Plug in type module, matched remote signal interface.
2. N position is shortest to each line, residual current low down much.
3. Ns response, max. Response time less than 25ns.
4.8/20 μ s wave type.

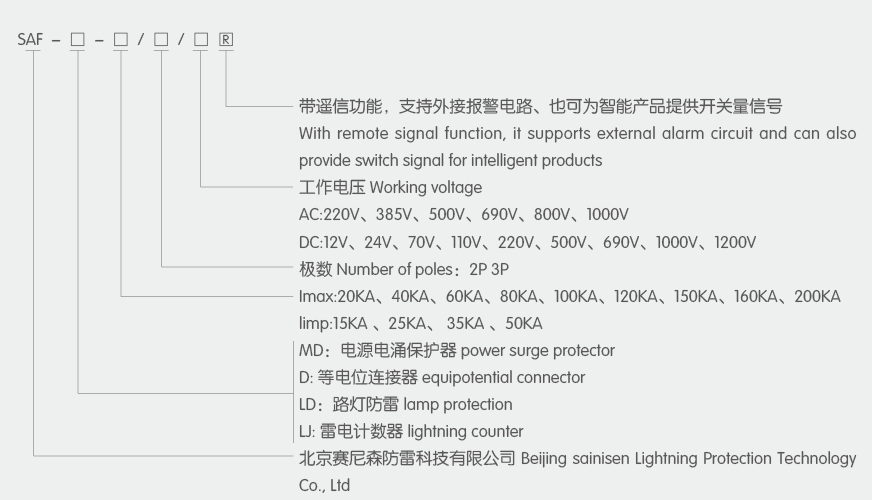

用户在产品加工定制或订货时，应详细标明产品系列、颜色、型号、级数、电压、数量。例如: DC系列红色SAF-MD- 40/3- -690V/100台。
Users in the product custom processing or ordering, should be marked product series, color, model, series, voltage,quantity. For example: DC series red SAF. -MD- -40/ 4- -690V/100 units.
